SFA10 C precast concrete headwalls are designed to comply with Sewers for Adoption guidelines for pipework discharging into open watercourses for plastic and clay pipework up to 600mm or concrete pipework up to 600mm. SFA10 C concrete headwalls have a backwall height of 1280mm. We cast the opening in the back wall of our precast headwalls to suit the pipe diameter and material of the pipe being used. We can cast multiple pipe openings, elliptical, square or rectangular culvert openings into any of our precast concrete headwalls. We can also cast pipe openings into the wing walls of our headwalls. We can factory fit all our precast SFA headwalls with Kee Klamp® handrails, Sewers for Adoption specification gratings, flap valves, penstocks and other flow control devices.

All Althon Sewers for Adoption precast headwalls are available with either 300 or 500mm thick toe extensions. If you cannot find the drawing or information you are looking for please contact us. The SFA10 C headwall weighs 2315kg.

If you require any assistance or more information please contact us by phone on 01603 488700 or by email sales@althon.co.uk

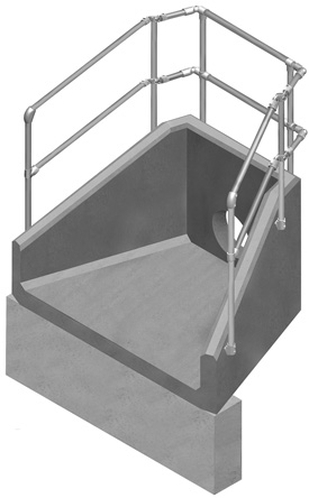

SFA10 C Headwall line drawing
As standard our headwalls have a natural concrete finish.
We can offer coloured headwalls in 4 colours but the final shade is affected by many influences.
Our Headwall Products are available in a range of colours
Natural
Our Headwall Products are available in a range of colours
Cotswold
Our Headwall Products are available in a range of colours
Agate
Our Headwall Products are available in a range of colours
Raven Grey
Our Headwall Products are available in a range of colours
Everglade
Product Name
Max Pipe Opening PCC
Max Pipe Opening Plastic / C'ware
Backwall Height
Approx Headwall Weight (kg)
SFA10 C Headwall
600
600
1230
2315

Filters for SFA10 C Headwall Downloads. To Download CAD and PDF Files Please Register or Login

    All Available Downloads for SFA10 C Headwall - Page 1 of 40

    You can select multiple files below to be added to a single zip file, your selections will be retained across different Headwalls

    Title
    PDF
    CAD
    Add to Zip File

    SFA10 C Headwall + Sfa1 300 Outfall Safety Grille

    SFA10 C Headwall + Sfa1 375 Outfall Safety Grille

    SFA10 C Headwall + Sfa1 450 Outfall Safety Grille

    SFA10 C Headwall + Sfa1 525 Outfall Safety Grille

    SFA10 C Headwall + Sfa1 600 Outfall Safety Grille

    SFA10 C Headwall + Cranked Grating

    SFA10 C Headwall + Sloped Grating

    SFA10 C Headwall + 3 Sided Kee Klamp

    SFA10 C Headwall + 3 Sided Kee Klamp + Sfa1 300 Outfall Safety Grille

    SFA10 C Headwall + 3 Sided Kee Klamp + Sfa1 375 Outfall Safety Grille

    SFA10 C Headwall + 3 Sided Kee Klamp + Sfa1 450 Outfall Safety Grille

    SFA10 C Headwall + 3 Sided Kee Klamp + Sfa1 525 Outfall Safety Grille

    SFA10 C Headwall + 3 Sided Kee Klamp + Sfa1 600 Outfall Safety Grille

    SFA10 C Headwall + Cranked Grating + 3 Sided Kee Klamp

    SFA10 C Headwall + Sloped Grating + 3 Sided Kee Klamp

    SFA10 C Headwall + 3 Sided Kee Klamp, Gate And Ladder

    SFA10 C Headwall + Backwall Kee Klamp

    SFA10 C Headwall + Backwall Kee Klamp + Sfa1 300 Outfall Safety Grille

    SFA10 C Headwall + Backwall Kee Klamp + Sfa1 375 Outfall Safety Grille

    SFA10 C Headwall + Backwall Kee Klamp + Sfa1 450 Outfall Safety Grille

    SFA10 C Headwall + Backwall Kee Klamp + Sfa1 525 Outfall Safety Grille

    SFA10 C Headwall + Backwall Kee Klamp + Sfa1 600 Outfall Safety Grille

    SFA10 C Headwall + Cranked Grating + Backwall Kee Klamp

    SFA10 C Headwall + Sloped Grating + Backwall Kee Klamp



    BIM Objects

    If you cannot find what you are looking for, please either email us or use our Headwall Design Service

    You can select multiple files below to be added to a single zip file, your selections will be retained across different Headwalls

    SFA10 C Headwall - 450mm ID pipe - 225mm Invert Level

    Example Render

    SFA10 C Headwall - 450mm ID pipe - 225mm Invert Level render

    RFA Object

    Version: 1
    Last Updated: April 23, 2019, 11:36 a.m.

    Download RFA Object

    ADSK Object

    Version: 1
    Last Updated: April 23, 2019, 11:36 a.m.

    Download ADSK Object

    IFC Object

    Version: 1
    Last Updated: April 23, 2019, 11:36 a.m.

    Download IFC Object

    COBie Parameters

    Parameter Name Parameter Value
    NamePrecastConcreteHeadwall_SFA10C_450mmIDPipe_225mmIL_AlthonLimited
    CreatedBydrawings@althon.co.uk
    CreatedOn2019-04-23T11:36:00
    Categoryn/a
    DescriptionPrecast Concrete Headwall
    AssetTypeFixed
    Manufacturersales@althon.co.uk
    ModelNumberSFA10C
    WarrantyGuarantorPartssales@althon.co.uk
    WarrantyDurationPartsn/a
    WarrantyGuarantorLaborn/a
    WarrantyDurationLaborn/a
    WarrantyDurationUnityear
    ReplacementCostn/a
    ExpectedLife>100
    DurationUnityear
    WarrantyDescriptionn/a
    NominalLength1500
    NominalWidth1000
    NominalHeight1230
    ModelReferencePrecast Concrete Headwall
    Shapen/a
    Size1500 x 1000 x 1230
    ColourLight Grey
    FinishSteel mould concrete finish
    Graden/a
    MaterialConcrete
    Constituentsn/a
    FeaturesLifting points cast into headwall
    AccessibilityPerformancen/a
    CodePerformanceBS EN 15258:2008
    SustainabilityPerformancen/a

    Althon_General Parameters

    Parameter Name Parameter Value
    AuthorAlthon Limited
    BIMObjectNameAlthonLimited_PrecastConcreteHeadwall_SFA10C_450mmIDPipe_225mmIL
    Version1
    LastUpdated2019-04-23T11:36:00
    ADSKCompatible2X3
    RevitCompatible2018 +
    ManufactureNameAlthon Limited
    ManufacturerURLwww.althon.co.uk
    NBSDescriptionPrecast concrete headwall unit
    NBSNoten/a
    NBSOfficeMasterTagn/a
    NBSReference45-25-40/305
    NBSTypeIDn/a
    DocumentationLiteraturehttps://www.althon.co.uk/products/sfa10-c-headwall/detail/
    DocumentationInstallationGuidehttps://www.althon.co.uk/products/sfa10-c-headwall/detail/
    DocumentationTechnicalhttps://www.althon.co.uk/products/sfa10-c-headwall/detail/
    DocumentationCertificatesOn request
    Uniclass2015codePr_20_93_37_65
    Uniclass2015TitlePrecast concrete headwall units
    Uniclass2015VersionProducts v1.13
    AlthonGeneralNotesWe can cast multiple pipe opening, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.
    AlthonHeadwallInstallationUnits should be bedded on minimum 200mm thick well compacted Class 6A* selected well graded granular material. *Manual of contract documents for Highway Works: Volume (MCHW1) specification for Highway Works, Series 600 (Nov.09). Sit the headwall level or with a slight fall 1:50 from pipe to spill mouth.
    AlthonHandlingA. Weight of concrete is based on 2.4 tonne/m³+5% is recommended for sizing lifting equipment B. All lifting points shall be used as specified below C. Unit to be lifted as per lifting diagram
    AlthonConcreteA. Mix ref: Self-compacting DC4/DS4 Mix B. Lifting strength bases on 2 cubes = 20N/mm² C. Characteristic 28 day cube strength = 50N/mm² D. Concrete provides Design Chemical Class 4 (DC4) to special Digest1, Table F2
    AlthonReinforcementA. Reinforcement to BS EN 13369 B. Scheduling, dimensioning, bending & cutting to BS8666 C. Cage to be machine tied with steel wire
    AlthonManufactureA. Manufacture to BS EN 15258:2008 precast concrete products - Retaining wall elements, Factory Production Control certificate number: 0086-CPR-650448 & BS EN 13369 B. Tolerances to BS EN 13369 clause 4.3.1.1 C. Finishing Top: Class A Sides: Class A Base: Class A Rear of back wall: Self-Levelled D. Marking: Units shall be indelibly marked to show: mould reference code De-mould date Job reference number and unique product number unit weight (kg)
    AlthonDesignA. Concrete design to EC2 B. Althon have designed the concrete units only, the site conditions should be assessed for suitability by the scheme designer C. Units are designed to withstand a vertical live load surcharge of 10kN/M² D. Weight of soil - 18kN/M² E. Angle of internal friction = 30 Deg. F. Design Life: >100 years Cover Block Size (mm): All Faces 55 Min Cover Size (mm): All Faces 55 Max Cover Size (mm): All Faces 60 Exposure induced by Carbonation: All Faces XC3/4 Corrosion induced by Chloride: XD3 Freeze/thaw attack: XF4 Chemical attack: XA3
    AlthonFabricationA. Manufacture IAW EN 1090-2 EXC CLASS 1 B. Material grade is to be: BS EN 10025 S275 C. Welding carried out IAW EN 1090-2 PARA 7.5.4 - 7.5.18 D. All fillet and butt welds to have a minimum throat thickness of 6mm & joints to be fully welded where possible. E. Ensure vertical flats are fully welded both sides where possible. F. All sharp edges and burrs are to be removed. G. Remove all weld splatter. H. Holes by punching are permitted with reaming. I. Galvanising is carried out after fabrication to BS EN:ISO 1461
    AlthonHeadwallMaxPipeSizeOpening in back wall cast to suit outside diameter of the pipe work. Invert level of pipe can be set to your specification
    AlthonHandrailSpecificationMax Pipe Opening PCC = 675mm ID and Max Pipe Opening Pastic/Clayware = 600mm ID
    AlthonToeInformationOur Sewers for Adoption compliant outfall range is available with toe extensions either 300 or 500mm thick with depths ranging from 400 to 1000mm.
