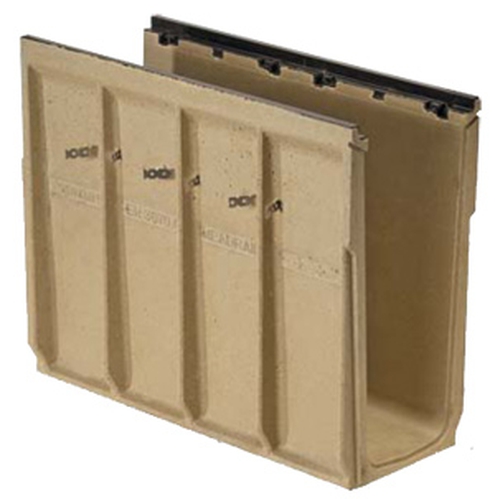

HD3070 is a 300mm polymer concrete drainage channel has a nominal width of 300mm for load class applications up to F900.

The HD3070 has an integral cast iron edge rail for strength under extreme dynamic loading. The lightweight construction of polymer concrete reduces installation time and manpower required on site.

  • Channel sections for a linear fall (base fall 0.5%) and no fall
  • Also with integral outlet connector
  • F900 300mm drainage channel for airports, ports and industrial areas
  • D400 300mm drainage channel for car parks, industrial and commercial units
HD3070 Polymer Drainage Channel line drawing

Load classes

D400
  • Carriageways
E600
  • Industrial zone
F900
  • Special surfaces like airport traffic areas
Product Name
Length
Height
Channel / Overall Width
Material
HD3070 Polymer Drainage Channel
1000mm
760mm
300 - 394mm
Polymer
