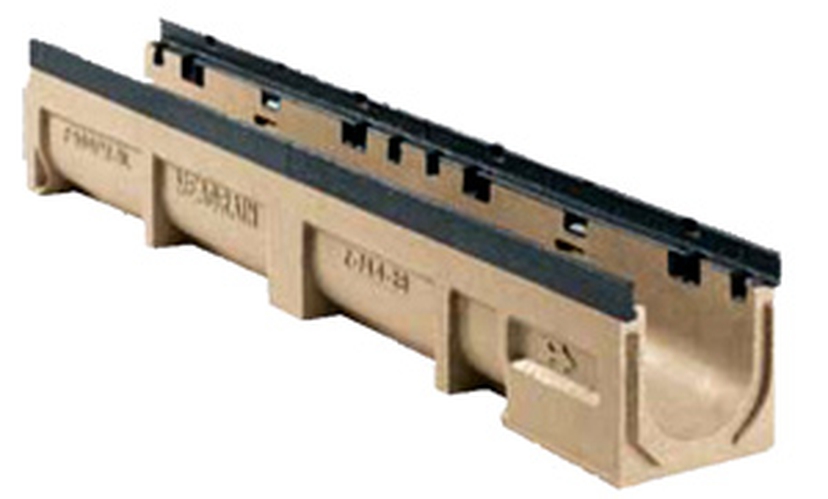

HD1000 is a 100mm polymer concrete drainage channel has a nominal width of 100mm for load class applications up to F900.

The HD1000 has an integral cast iron edge rail for strength under extreme dynamic loading. The lightweight construction of polymer concrete reduces installation time and manpower required on site.

  • Channel sections for a linear fall (base fall 0.5%) and no fall
  • Also with integral outlet connector
  • F900 100mm drainage channel for airports, ports and industrial areas
  • D400 100mm drainage channel for car parks, industrial and commercial units

If you require any assistance or more information please contact us by phone on 01603 488700 or by email sales@althon.co.uk

HD1000 Polymer Drainage Channel line drawing

Load classes

  • Light commercial vehicles
  • Road verges
  • Side Gutters
  • Carriageways
  • Industrial zone
  • Special surfaces like airport traffic areas
Product Name
Min / Max Height
Channel / Overall Width
HD1000 Polymer Drainage Channel
150 - 250mm
100 - 140mm

    All Available Downloads for HD1000 Polymer Drainage Channel

    Althon Heavy Duty 1000

    Datasheet and Installation Instructions for HD1000 Polymer Drainage Channel
