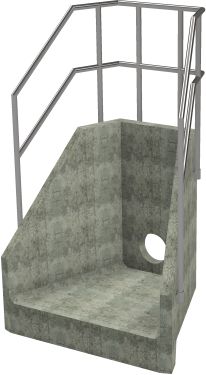

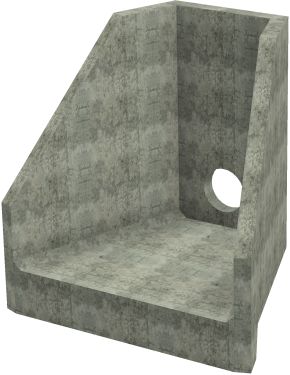

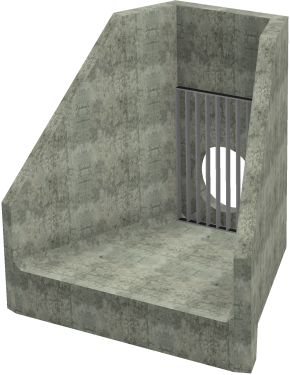

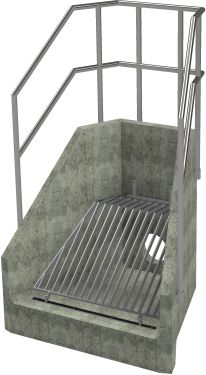

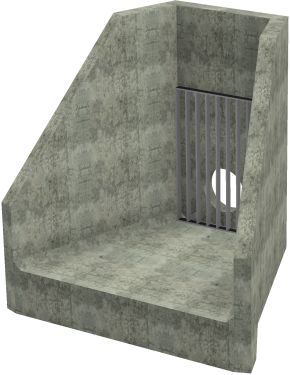

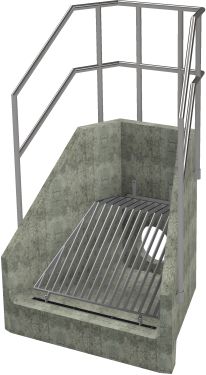

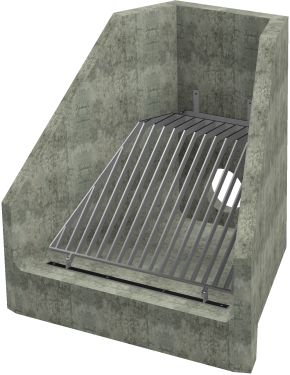

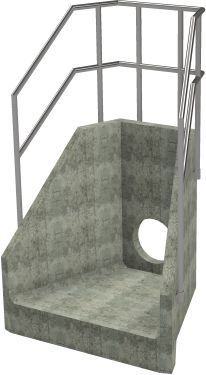

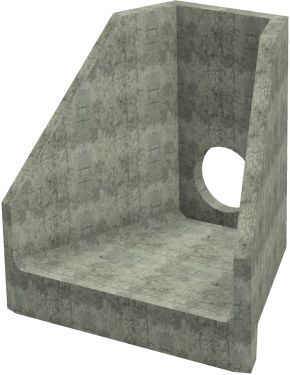

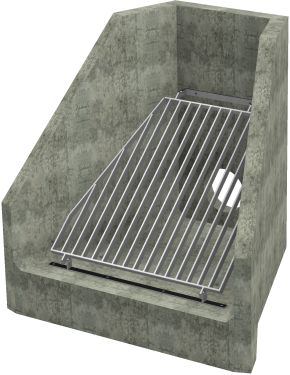

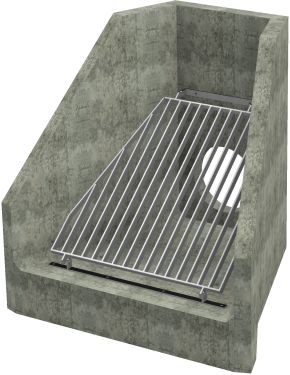

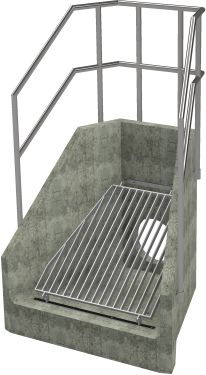

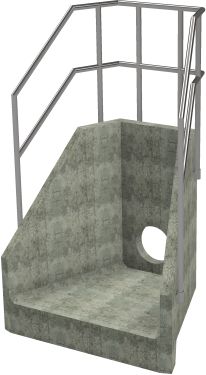

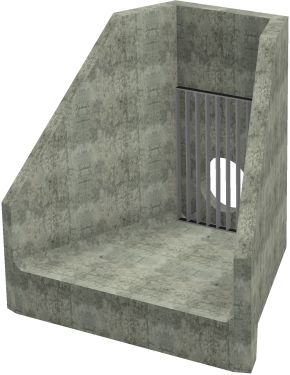

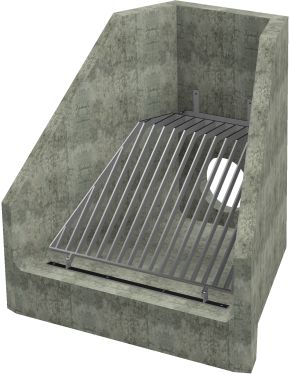

H6C B Headwalls precast concrete headwalls to suit plastic or clay pipes up to 600mm and concrete pipes up to 450mm. H6C B Headwalls have a backwall height of 1550mm. Stainless steel sockets can be cast into the headwall for the attachment of gratings and other factory fitted accessories.

We cast the opening in the back wall of our precast concrete headwalls to suit the pipe diameter and material of the pipe being used. We can cast multiple pipe openings, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.

The H6C B Headwall weighs 1400kg

If you require any assistance or more information please contact us by phone on 01603 488700 or by email sales@althon.co.uk

H6C B Headwall line drawing
Product Name
Max Pipe Opening PCC
Max Pipe Opening Plastic / C'ware
Backwall Height
Approx Headwall Weight (kg)
H6C B Headwall
450
600
1550
1400
