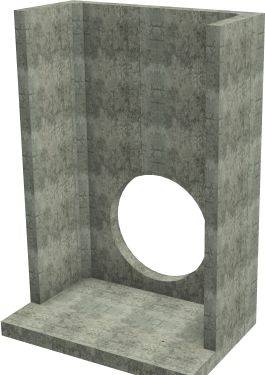

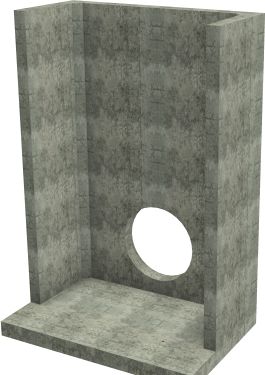

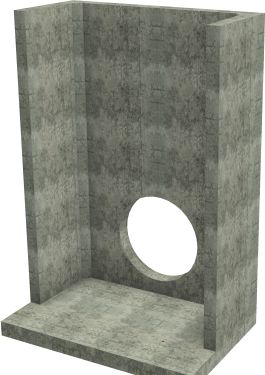

A one-piece reinforced concrete headwall available in a standard width of 1375mm and a height of 2035mm. Particularly suitable for steep embankments. Due to the relatively narrow footprint of the unit (back to front) it is advisable to fit suitable brackets to attach ground anchors. The unit can accommodate PCC pipes up to 750mm I.D. and plastic pipes up to 750mm I.D. Stainless steel sockets are provided for the attachment of gratings. Lifting points are cast in to each wingwall for safe handling using Althon lifting clutches. Galvanised mild steel angle can be fitted to the side walls in order to fit stoplogs and the back wall can be extended horizontally through the fitting of side wall extensions if required.

We cast the opening in the back wall of our headwalls to suit the pipe diameter and material of the pipe being used. We can cast multiple pipe openings, elliptical, square or rectangular culvert openings into any of our headwalls. We can also cast pipe openings into the wing walls of our headwalls.

If you require any assistance or more information please contact us by phone on 01603 488700 or by email sales@althon.co.uk

H42C D Headwall line drawing
Product Name
Max Pipe Opening PCC
Max Pipe Opening Plastic / C'ware
Backwall Height
Approx Headwall Weight (kg)
H42C D Headwall
750
750
2035
1390

Filters for H42C D Headwall Downloads. To Download CAD and PDF Files Please Register or Login

    All Available Downloads for H42C D Headwall - Page 1 of 2

    You can select multiple files below to be added to a single zip file, your selections will be retained across different Headwalls

    Title
    PDF
    CAD
    Add to Zip File

    H42C D Headwall

    H42C D Headwall + Closed Coupled Grating

    H42C D Headwall + Backwall Kee Klamp

    H42C D Headwall + Backwall Kee Klamp + Closed Coupled Grating

    H42C D Headwall + 100mm Flap Valve

    H42C D Headwall + 100mm Flap Valve + Backwall Kee Klamp

    H42C D Headwall + 150mm Flap Valve

    H42C D Headwall + 150mm Flap Valve + Backwall Kee Klamp

    H42C D Headwall + 200mm Flap Valve

    H42C D Headwall + 200mm Flap Valve + Backwall Kee Klamp

    H42C D Headwall + 250mm Flap Valve

    H42C D Headwall + 250mm Flap Valve + Backwall Kee Klamp

    H42C D Headwall + 300mm Flap Valve

    H42C D Headwall + 300mm Flap Valve + Backwall Kee Klamp

    H42C D Headwall + 400mm Flap Valve

    H42C D Headwall + 400mm Flap Valve + Backwall Kee Klamp

    H42C D Headwall + 500mm Flap Valve

    H42C D Headwall + 500mm Flap Valve + Backwall Kee Klamp

    H42C D Headwall + 600mm Flap Valve

    H42C D Headwall + 600mm Flap Valve + Backwall Kee Klamp

    H42C D Headwall + 700mm Flap Valve

    H42C D Headwall + 700mm Flap Valve + Backwall Kee Klamp

    H42C D Headwall + 800mm Flap Valve

    H42C D Headwall + 800mm Flap Valve + Backwall Kee Klamp

    H42C D Headwall + 100mm Penstock



    Datasheet and Installation Instructions for H42C D Headwall

    Free headwall design service

    If you cannot find what you are looking for our Free Headwall Design Service can help.
