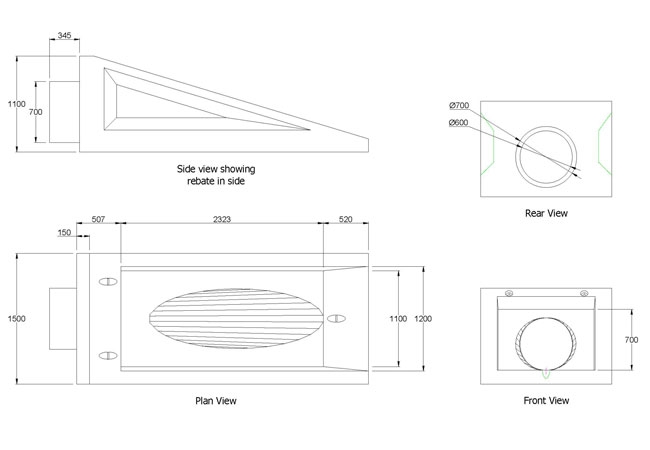

600 Mitred Headwall
The Althon 600mm mitred headwall is a fibre reinforced precast concrete open inlet allowing surface water runoff to enter SUDS features, or to act as an outlet or overflow. This headwall is designed for pipework up to and including 600mm ID.
The profile of the inlet 1:3 (18 Degrees) is the same as the surrounding ground in accordance with guidelines for the construction and adoption of swales and ponds.
Mitred headwalls are provided with a galvanised steel straight bar grating as standard.
The 600mm mitred headwall can be factory fitted with a 600mm inline non – return valve such as a WaStop if required
As standard our headwalls have a natural concrete finish.
We can offer coloured headwalls in 4 colours but the final shade is affected by many influences.
We can offer coloured headwalls in 4 colours but the final shade is affected by many influences.
Natural
Cotswold
Agate
Raven Grey
Everglade
Product Name
Max Pipe Opening PCC
Max Pipe Opening Plastic / C'ware
Backwall Height
Approx Headwall Weight (kg)
600 Mitred Headwall
600
600
1100
5090
Brochures, Datasheets and Installation Instructions for 600 Mitred Headwall
Free headwall design service
If you cannot find what you are looking for our Free Headwall Design Service can help.
