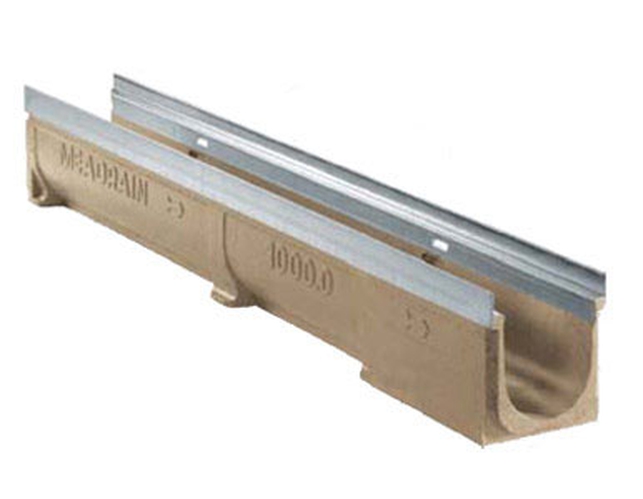

The Althon Mea Light to Medium Duty Polymer Concrete Drainage Channel is the ideal drainage solution for pedestrian areas, parks and for the drainage of large hard standing areas such as supermarket car parks. The Althon Mea LMD Drainage Channel satisfies new European standard EN1433 for drainage channels set in trafficked surfaces. The LMD drainage channels are available with either a galvanised steel edge protection or with a variant stainless steel finished edge.

Althon Mea LMD Channel Drainage is available in load classifications A15, B125 and C250 and is available in 100mm and 200mm widths. The Althon Mea LMD Drainage Channel system comes with a wide range of options for the gratings, such as perforated, stainless steel, slotted and mesh finishes.  The system can be designed and supplied to accommodate a level fall, linear fall or stepped fall.

  • Channel bodies for linear fall (base fall 0,5%), level fall and stepped fall
  • S1000 with stainless steel V2A edge protection

If you require any assistance or more information please contact us by phone on 01603 488700 or by email sales@althon.co.uk

Althon Z1000 line drawing

Load classes

A15
  • Pedestrians
  • Cyclists
  • Green spaces
B125
  • Car parks and parking decks
  • Delivery vans
C250
  • Light commercial vehicles
  • Road verges
  • Side Gutters
Product Name
Min / Max Length
Min / Max Height
Channel / Overall Width
Material
Althon Z1000
500 - 1000mm
150 - 305mm
100 - 130mm
Polymer

    Datasheet and Installation Instructions for Althon Z1000
